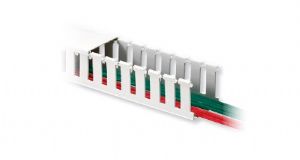

PANDUIT Panduct? NE NORYL**無鹵素線槽
概述
- 材料：無鹵素NORYL**
- UL認可的持續使用溫度：203°F (95°C)
- 阻燃性等級為UL94V-0
- 配備安裝孔
| Part Number | Duct Size W x H | Slot Width |
Cover
Part Number
|
||
| In. | mm | In. | mm | ||
| NE.5X.5WH6 | 0.63x0.56 | 16.0x14.2 | 0.38 | 9.7 | NC.5WH6 |
| NE.5X1WH6 | 0.63x1.06 | 16.0x26.9 | 0.31 | 7.9 | NC.5WH6 |
| NE1X1WH6 | 1.14x1.06 | 29.0x26.9 | 0.31 | 7.9 | NC1WH6 |
| NE1X1.5WH6 | 1.14x1.62 | 29.0x41.1 | 0.31 | 7.9 | NC1WH6 |
| NE1X2WH6 | 1.14x2.06 | 29.0x52.3 | 0.31 | 7.9 | NC1WH6 |
| NE1X3WH6 | 1.14x3.06 | 29.0x77.7 | 0.31 | 7.9 | NC1WH6 |
| NE1X4WH6 | 1.14x4.06 | 29.0x103.1 | 0.31 | 7.9 | NC1WH6 |
| NE1.5X1.5WH6 | 1.64x1.62 | 41.7x41.1 | 0.31 | 7.9 | NC1.5WH6 |
| NE1.5X2WH6 | 1.64x2.06 | 41.7x52.3 | 0.31 | 7.9 | NC1.5WH6 |
| NE1.5X3WH6 | 1.64x3.06 | 41.7x77.7 | 0.31 | 7.9 | NC1.5WH6 |
| NE1.5X4WH6 | 1.64x4.06 | 41.7x103.1 | 0.31 | 7.9 | NC1.5WH6 |
| NE2X1WH6 | 2.14x1.08 | 54.4x27.4 | 0.31 | 7.9 | NC2WH6 |
| NE2X2WH6 | 2.14x2.08 | 54.4x52.8 | 0.31 | 7.9 | NC2WH6 |
| NE2X3WH6 | 2.14x3.06 | 54.4x77.7 | 0.31 | 7.9 | NC2WH6 |
| NE2X4WH6 | 2.14x4.06 | 54.4x103.1 | 0.31 | 7.9 | NC2WH6 |
| NE3X1WH6 | 3.14x1.06 | 79.8x26.9 | 0.31 | 7.9 | NC3WH6 |
| NE3X2WH6 | 3.14x2.06 | 79.8x52.3 | 0.31 | 7.9 | NC3WH6 |
| NE3X3WH6 | 3.14x3.06 | 79.8x77.7 | 0.31 | 7.9 | NC3WH6 |
| NE3X4WH6 | 3.14x4.06 | 79.8x103.1 | 0.31 | 7.9 | NC3WH6 |
| NE3X5WH6 | 3.14x5.06 | 79.8x128.5 | 0.38 | 9.7 | NC3WH6 |
| NE4X2WH6 | 4.14x2.06 | 105.2x52.3 | 0.31 | 7.9 | NC4WH6 |
| NE4X3WH6 | 4.14x3.06 | 105.2x77.7 | 0.31 | 7.9 | NC4WH6 |
| NE4X4WH6 | 4.14x4.06 | 105.2x103.1 | 0.31 | 7.9 | NC4WH6 |
| NE4X5WH6 | 4.14x5.06 | 105.2x128.5 | 0.38 | 9.7 | NC4WH6 |
