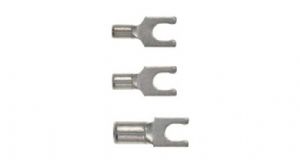

PANDUIT 短叉鎖式裸端
概述
? Locks in place for a secure connection in limited spaces? Fork design provides for fast and easy installation, without the need to remove fastener
? Internal barrel serrations assure good wire contact and maximum tensile strength
? Brazed seam protects terminal barrel from splitting during the crimp process
? Barrel of terminal internally beveled to provide quick and easy wire insertion
? Maximum recommended operating temperature 302°F (150°C)
? UL and CSA rated up to 2000 V per UL 486A/B
| Part | Wire Range | Stock Thickness(In.) | Stud Size | L | W | C | Recommended Installation Tool |
| P18-6SLF-C | 22-16 AWG | 0.03 | #6 | 0.51 | 0.27 | 0.22 | CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500? |
| P18-8SLF-C | 22-16 AWG | 0.03 | #8 | 0.56 | 0.29 | 0.25 | CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500? |
| P18-10SLF-C | 22-16 AWG | 0.03 | #10 | 0.57 | 0.33 | 0.25 | CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500? |
| P14-6SLF-C | 16-14 AWG | 0.03 | #6 | 0.51 | 0.25 | 0.22 | CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500? |
| P14-8SLF-C | 16-14 AWG | 0.03 | #8 | 0.56 | 0.29 | 0.25 | CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500? |
| P14-10SLF-C | 16-14 AWG | 0.03 | #10 | 0.57 | 0.33 | 0.25 | CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500? |
| P14-14SLF-C | 16-14 AWG | 0.03 | 1/4" | 0.66 | 0.44 | 0.35 | CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-2500? |
| P10-5SLF-L | 14-10 AWG | 0.04 | #5 | 0.6 | 0.25 | 0.19 | CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-1701?,CT-2500? |
| P10-8SLF-L | 14-10 AWG | 0.04 | #8 | 0.66 | 0.29 | 0.23 | CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-1701?,CT-2500? |
| P10-10SLF-L | 14-10 AWG | 0.04 | #10 | 0.67 | 0.33 | 0.23 | CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-1701?,CT-2500? |
| P10-14SLF-L | 14-10 AWG | 0.04 | 1/4" | 0.76 | 0.45 | 0.28 | CT-100A?,CT-200?,CT-600-A?,CT-1570?,CT-1701?,CT-2500? |
