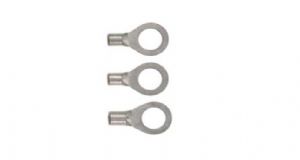

PANDUIT 重載環形裸端
概述
? Ring tongue design assures a secure connection in high vibration applications? Manufactured from stock 56% thicker than a standard #16 – 14 AWG terminal for use in heavy-duty applications
? Internal barrel serrations assure good wire contact and maximum tensile strength
? Brazed seam protects terminal barrel from splitting during the crimp process
? Barrel of terminal internally beveled to provide quick and easy wire insertion
? Maximum recommended operating temperature 302°F (150°C)
? UL and CSA rated up to 2000 V per UL 486A/B
Recommended Installation Tool
CT-100A,CT-200,CT-1570?,CT-2500?
| Part | Wire Range | Stock Thickness (In.) | Stud Size | L | W | C |
| P12-6HDR-L | 16-12 AWG | 0.05 | #6 | 0.78 | 0.31 | 0.36 |
| P12-8HDR-L | 16-12 AWG | 0.05 | #8 | 0.78 | 0.31 | 0.36 |
| P12-10HDR-L | 16-12 AWG | 0.05 | #10 | 0.81 | 0.37 | 0.36 |
| P12-14HDR-L | 16-12 AWG | 0.05 | 1/4" | 0.96 | 0.52 | 0.43 |
| P12-56HDR-L | 16-12 AWG | 0.05 | 5/16" | 0.96 | 0.52 | 0.43 |
| P12-38HDR-L | 16-12 AWG | 0.05 | 3/8" | 1.04 | 0.58 | 0.48 |
